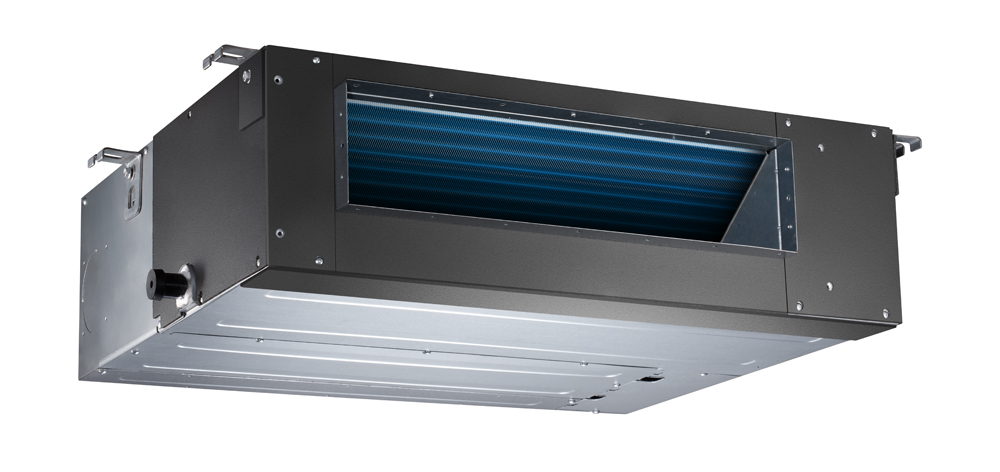

CH-24LCDTU/I

Description

Light Commercial Slim Ducts offer an inconspicuous solution, hidden in attics and ceiling crawl spaces, without the energy loss associated with central ducted systems. 24K, 36K, 48K, and 60K capacities are available with up to 20.5 SEER. Cooper&Hunter’s Slim Duct systems provide flexibility of installation as, for example, the ducts can be directed into separate areas which are collectively controlled by one wall thermostat.

If you need some help with product please visit support page
support materials
Cooling Capacity (nominal)
24000
SEER
20.5
Power source
208-230V,1Ph,60Hz
Unit Net/Gross weight
86.86/102.95
Unit dimensions (W*H*D)
43.31x30.47x9.8
Rated Current Heating
8.19
Rated Current Cooling
8.52
Port Size (Liquid - Gas/Suction)
Φ9.52/Φ15.9(3/8"/5/8")
